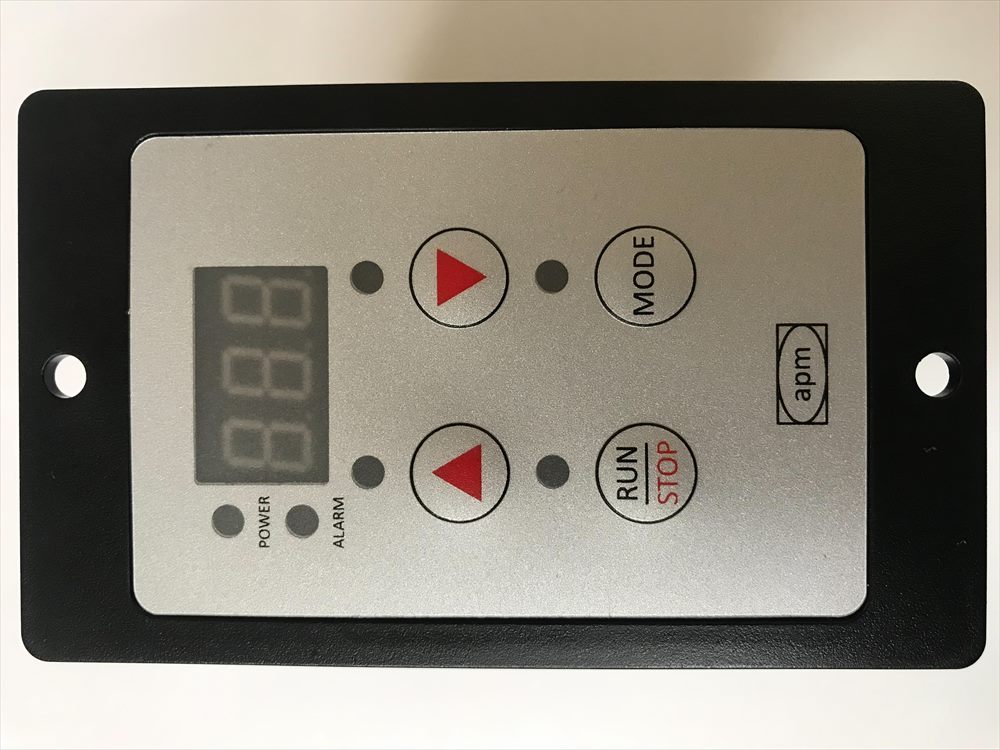

APS854 變頻器正面面板
正面面板 背面端子 接線圖
馬達驅動與電源Motor Drive & Power

迷你變頻器 1/4HPMini Inverter / VFD, 1/4 HP

APS854 · APS853

單相輸入、三相輸出的小型變頻器，可用一般家用單相 AC220V 電源驅動三相 200W 馬達，面板按鍵即可直接調速與啟停，適合健身器材、產業機械等小馬力應用。 A compact single-phase-input / three-phase-output inverter that drives a 3-phase 200W motor from ordinary single-phase AC220V. Adjust speed and start/stop directly from the keypad — ideal for fitness equipment and small industrial machinery.

  • 單相 AC220V 輸入 → 三相 220V 輸出Single-phase AC220V in → 3-phase 220V out
  • 輸出頻率 1–120Hz，V/F 曲線可調Output 1–120Hz, adjustable V/F curve
  • 面板直接控制運轉／停止／轉速Direct keypad run / stop / speed control
  • 異常警示與開集極異常輸出Fault alarm & open-collector fault output
詢價／索取規格Request a Quote ← 回產品列表← All products

規格表Specifications

型號ModelAPS854 / APS853
輸入電壓Input voltage單相 AC220V（範圍 AC200–250V）Single-phase AC220V (range AC200–250V)
額定輸入電流Rated input current2A
輸出Output三相 220V 馬達，額定功率 200W（約 1/4 HP）3-phase 220V motor, rated 200W (approx. 1/4 HP)
輸出頻率範圍Output frequency1 – 120 Hz
控制方式Control methodV/F 壓頻比，V/F 曲線可設定調整V/F (voltage/frequency), adjustable V/F curve
操作介面Operation面板按鍵直接控制運轉／停止／轉速Keypad direct control of run / stop / speed
顯示面板Display panel三位數七段顯示器、6 顆指示燈、4 個按鍵3-digit 7-segment display, 6 LEDs, 4 keys
保護／警示Protection / alarm異常顯示 E-X.X；開集極異常輸出 24VDC 25mAFault display E-X.X; open-collector fault output 24VDC 25mA
電源端子Power terminalsL、N（單相電源）／U、V、W（三相馬達）／接地L, N (AC in) / U, V, W (3-phase motor) / ground
訊號端子Signal terminalsDOM、MOI、MI、MO

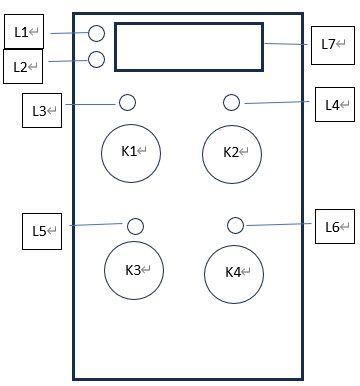

操作面板Control Panel

APS854 操作面板
  • POWER （綠）電源指示，開機亮起(green) power indicator, on at startup
  • ALARM （紅）異常指示，運行中亮起表示異常(red) lights up to indicate a fault during operation
  • ▲ K1 調速加／參數加speed up / value up
  • ▼ K2 調速減／參數減speed down / value down
  • RUN/STOP K3 啟動／停止；設定時為確認(OK)run / stop; confirm (OK) in setup
  • MODE K4 進入／退出參數設定enter / exit parameter setup

※ 馬達運行中無法進入參數設定，須停止後才能設定。* Parameters can only be set when the motor is stopped.

接線示意Wiring Diagram

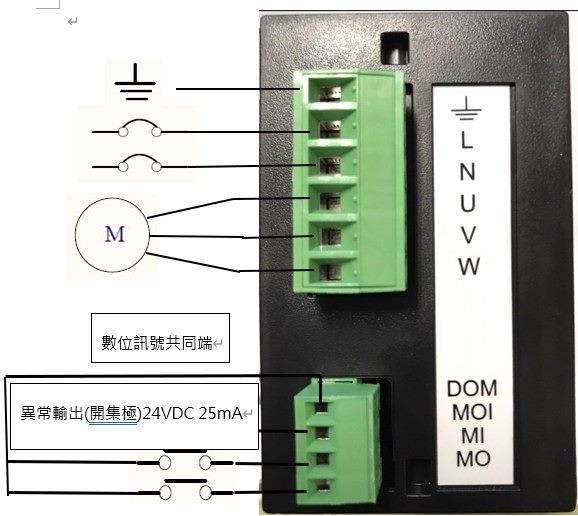

APS854 接線圖

單相電源接 L、N 與接地；三相馬達接 U、V、W。異常輸出為開集極（24VDC、25mA），可外接警示或連動控制。 Connect single-phase power to L, N and ground; connect the 3-phase motor to U, V, W. The fault output is open-collector (24VDC, 25mA) for external alarm or interlock.

⚠ 安全：三相電源不可接到 U、V、W；斷電後待主板紅色充電燈熄滅再接觸線路；請勿對內部組件做耐壓測試。 ⚠ Safety: never connect 3-phase mains to U/V/W; wait until the red charge LED is off before touching the board; do not Hipot-test internal components.
